Engine compression = engine power. A simple equation even we non-engineers can understand. In this post, we’ll look at how to test engine compression.
What is engine compression?
First, however, let’s define our terms.
Engine compression refers to the pressure your engine generates inside the cylinders while it’s running.
How much pressure the engine produces and how well it converts that pressure into usable work influence your engine’s efficiency and power.
How it all works and how wear and deposits can erode compression (i.e. horsepower) over time are interesting topics you can read more about here. But today, we’re talking about how to test engine compression.
For this example, I used my 1998 Toyota Corolla. Don’t laugh. I paid cash for it and it runs as smooth as a sewing machine. I also sought the help of Pat Burgraff, one of the techs in our Mechanical Lab.
Check out the video or the step-by-step directions to find out how to test engine compression.
How to Test Engine Compression
Total Time: 30 minutes
Ensure the vehicle won’t start when you crank it over
Testing compression requires you to crank the engine several revolutions, and you don’t want it to fire in the process. Remove the fuel-pump and fuel-injection fuses so you’re not dumping gas into the cylinders each time you crank the engine. Then, disconnect the coil packs. Bear in mind the process for your vehicle may be different from the images here.u003cbr/u003eu003cbr/u003eu003cimg alt=u0022Engine Compressionu0022 src=u0022https://blog.amsoil.ca/wp-content/uploads/2017/03/IMGP0416-e1601478641701.jpgu0022 style=u0022width: 300px;u0022/u003e
Pull the spark plugs

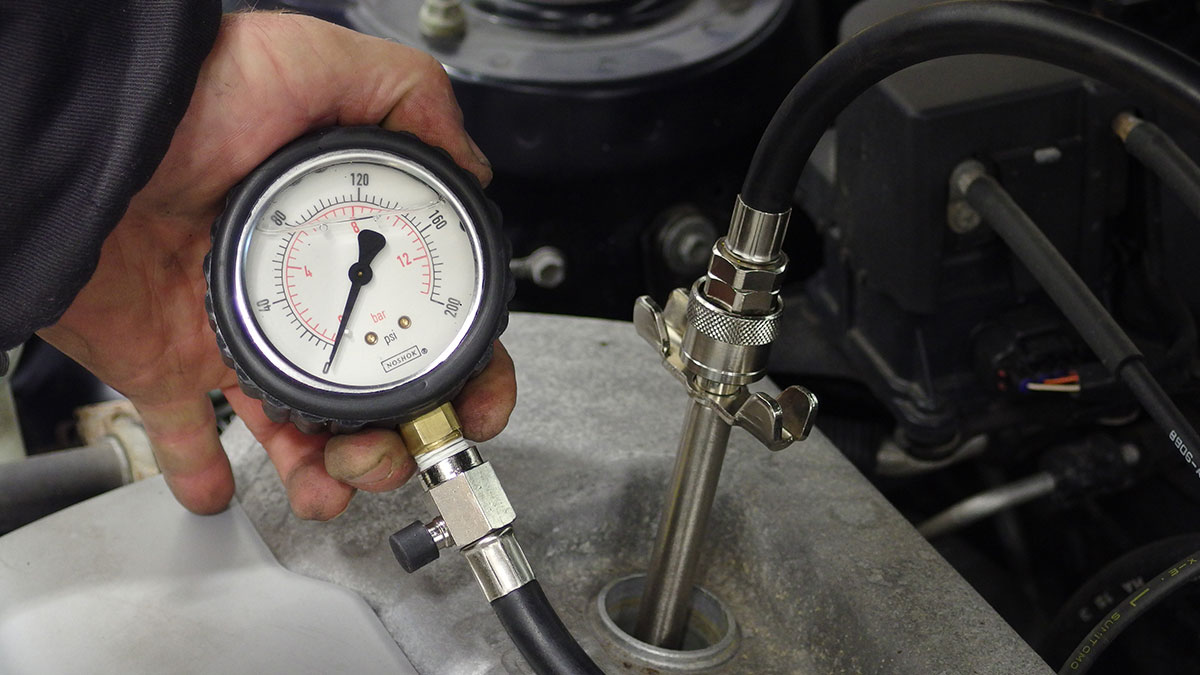

Label the plug wires so you return them to the correct positions. Otherwise, your vehicle won’t start when you’re done. Thread the compression gauge into a spark plug opening. Take care not to cross-thread it. You can get a compression tester for less than $50 at most auto parts stores.u003cbr/u003eu003cbr/u003eu003cimg alt=u0022Compression Gaugeu0022 src=u0022https://blog.amsoil.ca/wp-content/uploads/2017/03/IMGP0417-e1601478821712.jpgu0022 style=u0022width: 300px;u0022/u003e
Crank the engine
Have a helper crank the engine 5-10 times, or until the needle on the compression gauge stops ratcheting up. Note the psi and move to the next cylinder.u003cbr/u003eu003cbr/u003eu003cimg alt=u0022Test engine compressionu0022 src=u0022https://blog.amsoil.ca/wp-content/uploads/2017/03/IMGP0419-e1601478946804.jpgu0022 style=u0022width: 300px;u0022/u003e
Record results
Write down the results for each cylinder so you can compare and identify if compression is too low in one cylinder.
What’s considered “normal” engine compression?
Here’s where things grow murky. “Good” compression depends on the engine. Unfortunately, engines don’t come with their proper compression stamped on the outside.
But a good rule of thumb says that each cylinder in a mechanically sound engine should have compression of 130 psi or higher.
While I’ve seen some people claim 100 psi is sufficient, the gearheads and other sources I’ve consulted consider that too low.
In addition, you want consistency from one reading to the next.
Again, a good rule of thumb is no more than 10 percent variation between any of the cylinders.
That’s not to say 15 or 20 percent variation in one cylinder means your engine is junk. But a good, healthy engine should demonstrate minimal variation.
My trusty Corolla nailed the test, making between 165-175 psi in each cylinder.
A quick test if one cylinder has low compression
If one cylinder has low compression, try pouring about a teaspoon of oil into the spark-plug hole and retesting. If compression increases, it’s likely the rings are stuck or worn. The oil acts as a seal and helps close the gap between the rings and the cylinder wall through which the cylinder is losing pressure.
If that doesn’t work, it’s possible the valves or valve seals are worn.
If you suspect stuck rings, try an engine flush designed to clean deposits, such as AMSOIL Engine and Transmission Flush.
You can also try a fuel additive that cleans pistons, like AMSOIL P.i.
Word to the wise: you may illuminate your check engine light performing this test, as I did. It went off by itself after driving a few miles, though.
Updated. Originally published March 13, 2017.
Relieve the pressure of the gauge between cylinders. Good article.
I have a 2000 Jeep wrangler sport with a 4.0 liter 6 cylinder engine I been curious about what kind of a reading I would get with a compression test it has almost 89000 miles
I have a 96 Challenger that I bought two years ago. It’s been a great car so far but recently, the engine seems to be losing power. When I accelerate, the car revs loudly but does’t go as fast as it used to. Does this mean that there is low pressure in the engine or could there be other issues? I haven’t her to the mechanic yet as I want to diagnose her before i do.
Anyway, great article. Thanks
Hi Jim,
It could be, but it could also be any number of other issues with a car that old. Checking compression is a good (and inexpensive) first place to start your diagnosis, however.
Good luck,
John
If your engine is revving up, but you have no “power” sounds more like transmission/torque converter slipping.
You can find out the OEM engine cylinder compression by looking in an original shop manual, specific for your car, published for the car’s manufacturer. Try finding a cheap used one on the internet or look in the owner’s manual for the publisher’s name & ordering information. Don’t forget to perform a “Leak Down Test” after checking the compression, this will tell you if the rings or the specific intake or exhaust valve/s are bad. This being said, I would do a transmission fluid check first based on your description of the problem. Remove the dip stick, when the fluid is hot, & check the level & add fluid if necessary. Make sure the existing fluid is clear & pink in color. The owner’s manual will indicate the proper fluid name & type. If it’s dark brown & burnt smelling bring it to a shop that knows transmissions for a service or repair estimate. Don’t make the mistake of throwing parts at the car, it’s like telling your doctor what’s wrong with you. You’re always wrong. Try taking some automotive courses at your community college, you’ll have a lot of fun & might learn something.
